Ventilation system BreezMe HP series

Heat Pump FunctionsCooling of supply air in summerReduction of heating costs for supply air during other periods of the year Convenient Transport, Quick InstallationThe unit is divided into complete…
Расход воздуха: 1200 ... 7500 m3/h

Хотите купить или у вас есть вопросы?
Ventilation system BreezMe HP series


mycond-image-1

Heat Pump Functions

Cooling of supply air in summer

Reduction of heating costs for supply air during other periods of the year

mycond-image-2



Convenient Transport, Quick Installation

The unit is divided into complete functional modules that are convenient for transport and easy to assemble independently


mycond-image-3

High Energy Efficiency

High-performance sorption rotary regenerator provides excellent heat and moisture recovery

Installation of multi-row condensers and evaporators on both sides of the regenerator ensures the most efficient operation of the heat pump

mycond-image-4



Easy Startup

Multifunctional automation integrated with the central unit – configured and ready to work


mycond-image-5

Optimal Matching

Factory matching of heat pump components and ventilation unit components

Manufacturer's warranty for the final product of the central unit and heat pump



Rozmiar centrali Wydajność
nominalna
Zakres
wydajności
Wysokość Szerokość Wysokość
przyłącza
kanału
Szerokość
przyłącza
kanału
Jednostki m3/h m3/h mm mm mm mm
MVS021c 2100 1200-2100 991 967 345 860
MVS030c 3000 1500-3000 1255 967 480 860
MVS040c 4000 2000-4000 1255 1174 480 1065
MVS055c 5000 2500-5500 1525 1345 615 1235
MVS075c 7500 3750-7500 1765 1486 735 1380



mycond-image-6

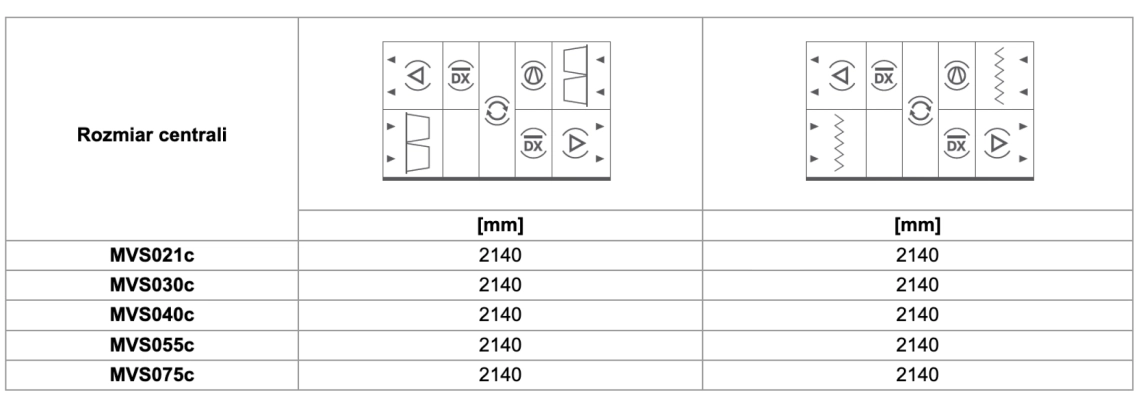

Base Unit Lengths


mycond-image-7
